Yamaha Silver 200W Power Amplifier

Yamaha Silver 200W Power Amplifier – M5000SL

With more than 130 years of experience, Yamaha has grown to become the world’s leading sound company. The M-5000 embodies this spirit with time-honored craftsmanship and market-leading innovation and serves as the epitome of high-fidelity audio reproduction.

Key Features

• 200 W + 200 W (4 ohm, 20 Hz-20 kHz, 0.07% THD, 2-channel driven)
• 100 W + 100 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, 2-channel driven)
• Meticulously designed, balanced signal transmission
• Floating and balanced power amplifier layout for improved drivability
• Perfectly symmetrical design for isolating left and right channels
• Low impedance design with shortened signal and power supply paths
• Improved construction delivers state-of-the-art rigidity
• Massive toroidal core power transformer

Features

• Perfectly Balanced
  Together with the GT-5000 turntable and C-5000 preamplifier, Yamaha delivers an end-to-end balanced signal chain across its flagship models for premier performance.
• Designed to Perform
  Meticulously designed, the M-5000 adopts a perfectly symmetrical layout to isolate the left and right channels both physically and electrically.The deliberately simple design, which also serves to reduce the signal path as much as possible, minimizes energy loss and achieves lower impedance for high-fidelity performance.
• Floating and Balanced Power Amplifier with MOSFETs
  As opposed to conventional power amplifier designs whereby power is supplied via a power transistor and the negative polarity is connected to ground, the power supply of the M-5000 is connected directly to each positive and negative side of the output stage.
  Completely floating the entire power amp circuit from the ground removes any undesirable impact of minute voltage fluctuations or ground noise.
  The design also creates an ideal symmetrical layout for employing MOSFET power amplifiers, improving drivability for low impedance speakers.
• Rigid Frame Structure Featuring a Mechanical Ground Concept
  The M-5000 has been designed from the ground up to maximize rigidity — reducing unwanted vibration for optimal sonic performance.
  Further, employing a mechanical ground concept by fixing the power transformer, block capacitors and heat sink directly to the rigid, streamlined construction with bolts ensures they are fully supported and eliminates the influence of vibrations.

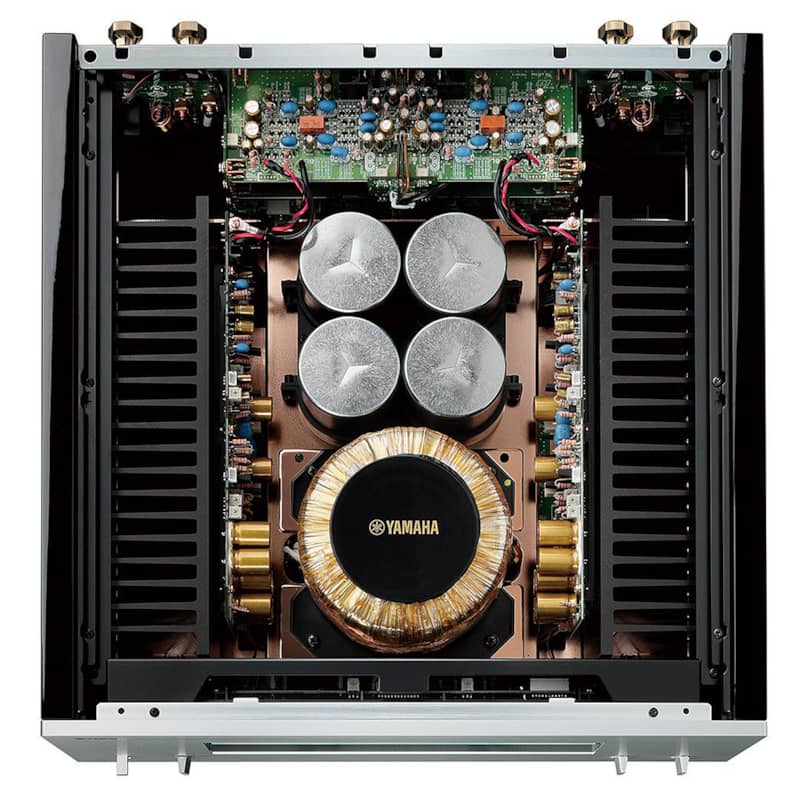

• Massive Toroidal Core Transformer and Low Impedance Design
  Delivering high-fidelity performance, a massive toroidal transformer is utilized with a 3 mm-thick pure brass base which suppresses unwanted vibrations.
  In addition, the power transformer does not influence the surrounding audio circuits due to less leakage flux.
  The drawn-out copper wiring from the winding core contributes to the low impedance design by markedly reducing the loss of energy when compared to conventional designs.
• Thick Wires and Screw-Type Connections for Power Supply
  Thick wires and screw-type connections contribute to the low-impedance design of the M-5000 — minimizing energy loss that would otherwise typically occur in conventional connections and wire assemblies.
  The use of screws and brass terminals directly on the block capacitors as opposed to solder promotes a strong, low-impedance connection.
• Custom-Designed Feet
  All aspects of the M-5000 design were considered in producing this flagship model. Its construction exudes master craftsmanship and reflects an obsession with achieving the highest levels of performance.
  The feet are no exception. Original in their design, the heavy-duty brass feet function either as fully supported spikes or with a scratch guard base for use on delicate surfaces.

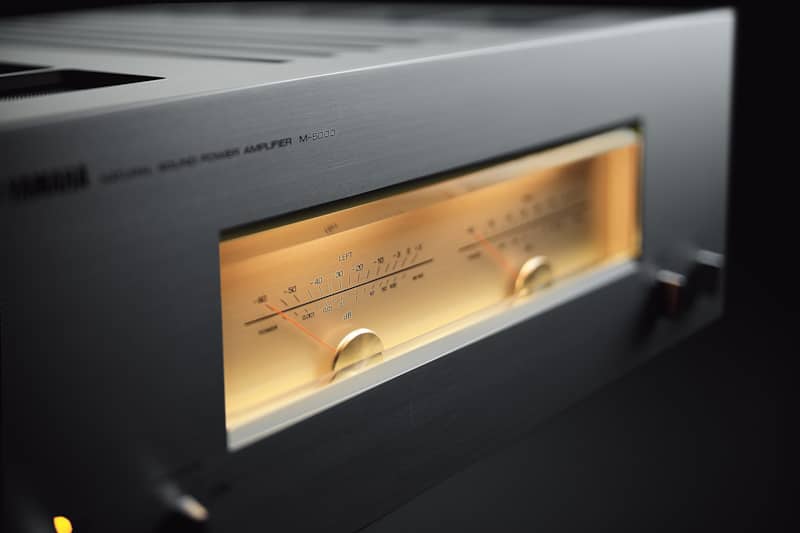

• Exquisite, Large Level Meters Reflect the Dynamics in the Music
  The M-5000 features large, high-precision meters on the front panel, enabling audiences to visualize the dynamics of the music.
  Measuring 7 mm thick and made from Asahi glass, these quality meters only enhance the luxurious and exceptionally elegant aesthetic of the M-5000.

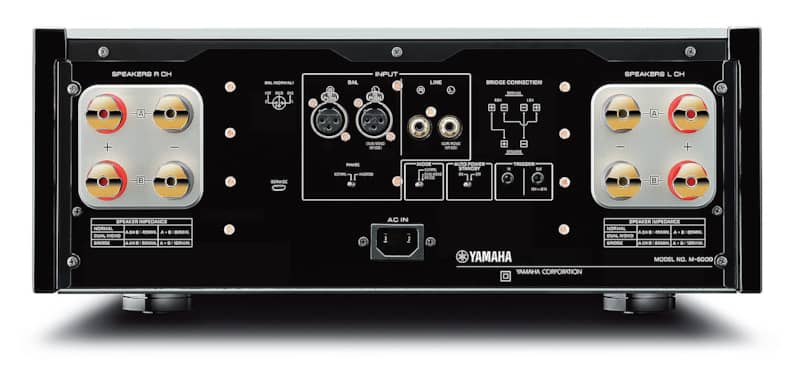

• Premier Speaker Terminals
  The M-5000 utilizes oversized, screw-type speaker terminals to ensure ease-of-use and a secure connection. Cut from a pure brass block, the original Yamaha design denotes a meticulous attention to detail and premier quality.
  The 3 mm thick terminal base plate is also made from pure brass for strength and rigidity, and assists in reducing distortion due to its non-magnetic properties.

Specifications

Audio

• Input Terminal: RCA: 1, BAL: 1, TRIGGER IN: 1
• Output Terminal: TRIGGER OUT: 1
• Rated Output Power: 100 W + 100 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, 2-channel driven), 200 W + 200 W (4 ohm, 20 Hz-20 kHz, 0.07% THD, 2-channel driven), 400 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, Monaural driven)
• Dynamic Power Per Channel: [IHF] 125 W + 125 W (8 ohm), 170 W + 170 W (6 ohm), 250 W + 250 W (4 ohm), 500 W + 500 W (2 ohm)
• Dynamic Headroom: 0.97 dB (8 ohm)
• Maximum Output Power: 220 W + 220 W (4 ohm, 1 kHz, 0.7% THD)
• IEC Output Power: 125 W + 125 W (8 ohm, 1 kHz, 0.02% THD)
• Maximum Effective Output Power: [JEITA, 1kHz, 10% THD]135 W + 135 W (8 ohm), 270 W + 270 W (4 ohm)
• Power Bandwidth: 10 Hz-50 kHz (8 ohm, 0.1% THD, 45 W)
• Damping Factor: 300 or higher (8 ohm, 1 kHz)
• Input Sensitivity / Input Impedance: (BAL) 2.0 Vrms / 47 kohm, (LINE) 1.0 Vrms / 47 kohm [1 kHz 100 W / 8 ohm conversion]
• Maximum Input Signal Voltage: (BAL) 2.20 Vrms [1 kHz, 0.5% THD], (LINE) 1.10 Vrms [1 kHz, 0.5% THD]
• Frequency Response: +0 dB / -3 dB (5 Hz-100 kHz), +0 dB / -0.3 dB (20 Hz-20 kHz)
• Total Harmonic Distortion Plus Noise: 2-channel driven: 0.035% (LINE [BAL] to SP Out, 20 Hz-20 kHz, 50 W, 8 ohms), Monaural driven: 0.05% (LINE [BAL] to SP Out, 20 Hz-20 kHz, 200 W, 8 ohms)
• Channnel Separation: 90 dB or higher (1 kHz, Input 1.0 kohm Terminated), 70 dB or higher (10 kHz, Input 1.0 kohm Terminated)
• Signal-to-Noise Ratio: [IHF-A network, Input 1 kohm shorted] 110 dB
• Residual Noise: [IHF-A network] (BAL) 40 uVrms, (LINE) 50 uVrms
• Meter Class: The 2.5th class

General

• Power Consumption: 400 W
• Standby Power Consumption: Off Mode: 0.1 W, Standby Mode: 0.2 W
• Maximum Power Consumption: 800 W
• Power Management (Auto Power Standby): Yes

Approximate Dimensions

• Height: 7-1/8″
• Width: 17-1/8″
• Depth: 18-1/4″

Approximate Weight

• Unit: 59.3 lbs
• Shipping: 70 lbs

Warranty Information

• Manufacturer Warranty (authorized online retailer): 5 Years Parts and Labor
