Description

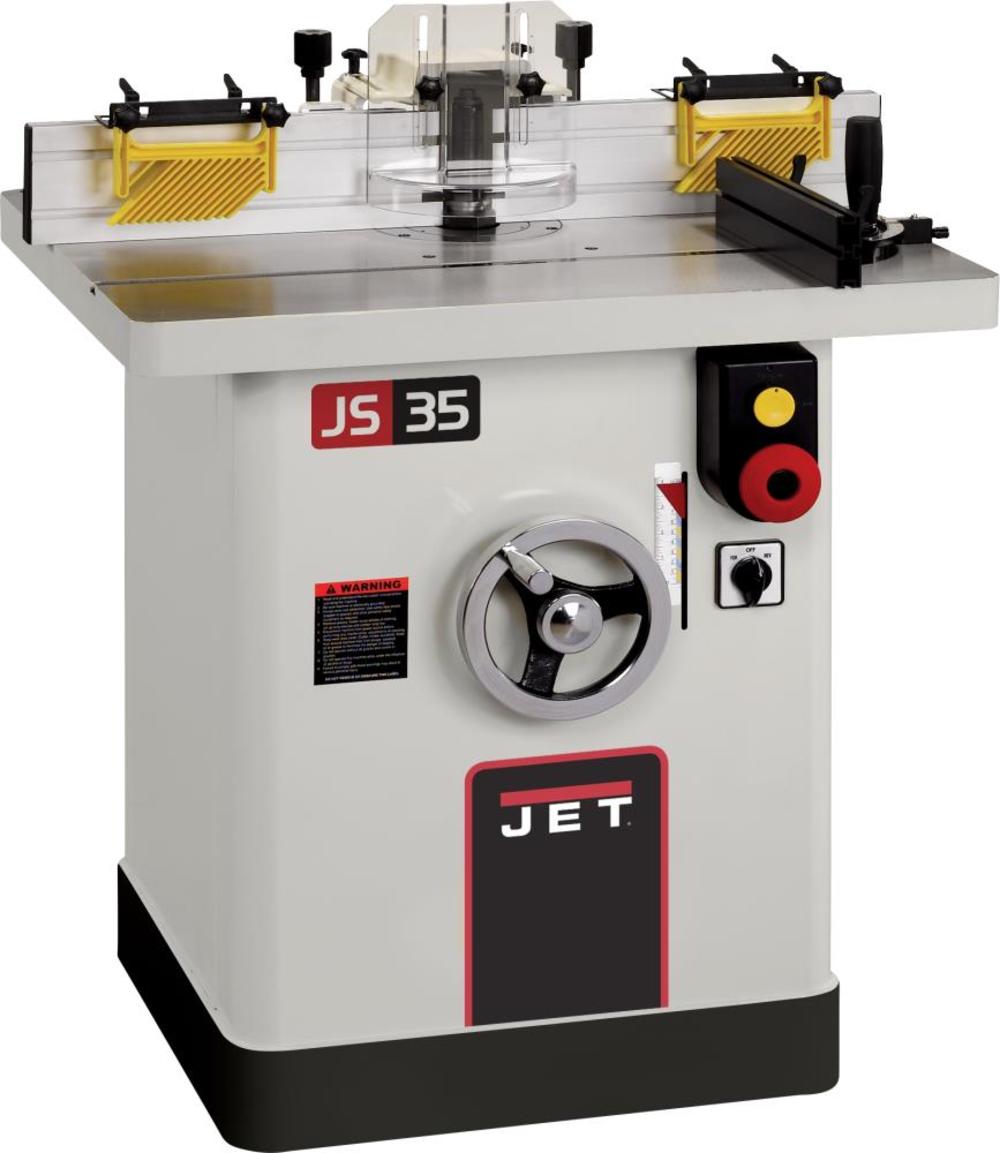

JWS-35X5-1 Industrial Shaper 5 HP, 1Ph
This heavy-duty JET® shaper is available with a powerful 5 HP, 1Ph motor with magnetic controls. The four-speed (4000, 6000, 8000, 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt. The independently adjustable fences have micro adjust controls for precise positioning.
Features
Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
Powerful 5 HP, 1Ph motor w/magnetic controls

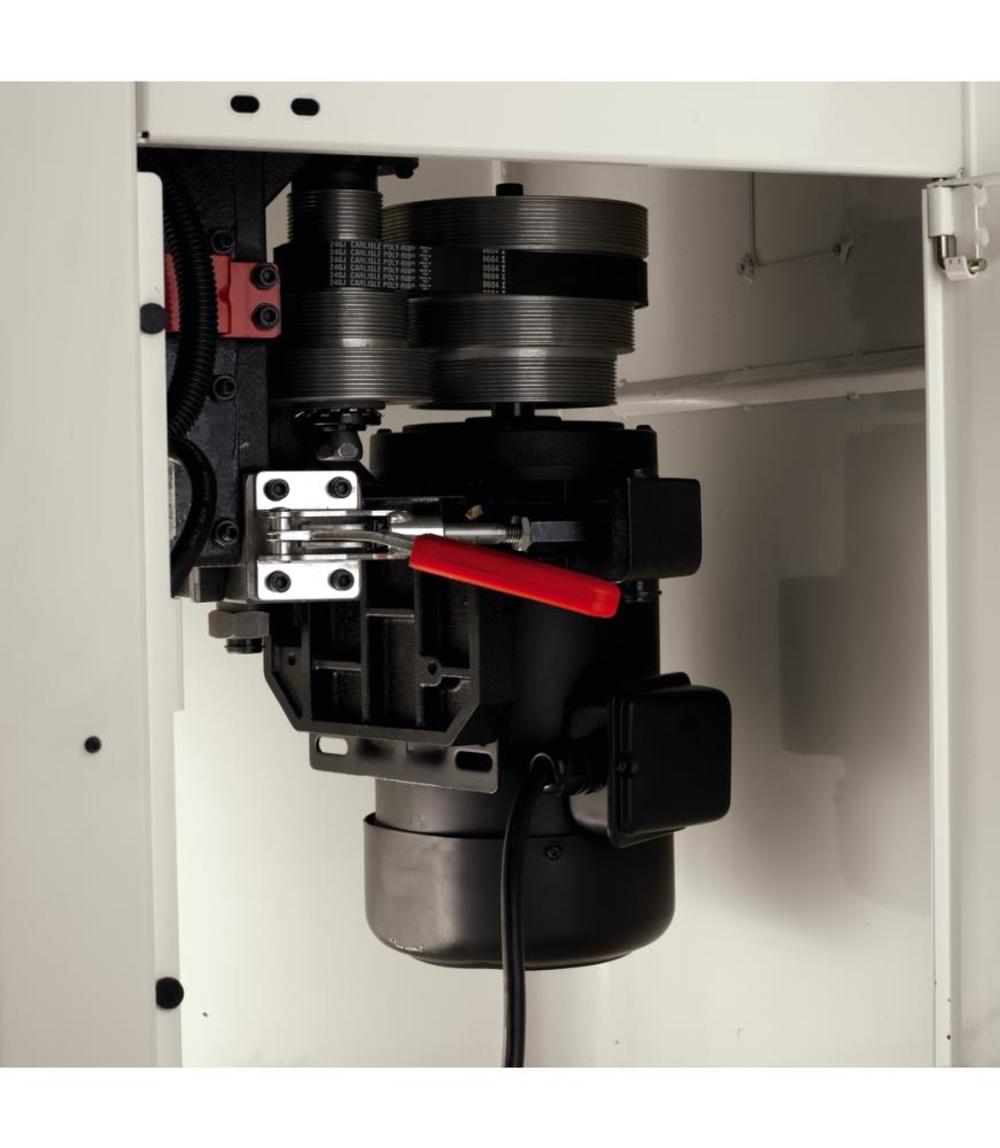

Poly-v-belt transfers maximum power to the spindle
Large 26-3/4 In. x 32-1/4 In. precision ground cast iron table provides a durable work area, pre drilled for power feeder
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
708326
Amperage (A)
17
Assembled Weight (lbs)
473
Bit Change Type
Wrench
California Proposition 65 Warning Required
Yes
Color / Finish
See Photo
Country of Origin
Taiwan
CSA Certified
No
Dust Collection
Yes
Dust Port
Yes
Dust Port Outside Diameter (in)
4
Electric Motor Brake
No
ETL Listed
No
Fence Type
Adjustable
globalTradeItemNumber (GTIN)
00662755988134
Horsepower (hp)
5
Internal Supplier Part #
708326
Internet Product Code (IPC)
EC416F4316E
Manufacturer Warranty
2 Year
Micro Adjust Fence
No
Package Depth
30
Package Height
41
Package Weight
550
Package Weight (lbs)
550
Phase
Single Phase
Spindle Speed High (rpm)
10000
Spindle Speed Low (rpm)
4000
Stand Included
Yes
Switch Type
Push Button
Table Height From Floor (In)
33.25
Table Length (in)
26.75
Table Material
Cast Iron
Table Space in Front of Blade
0
Table Width (in)
32.25
UL Listed
No
UPC
662755988134
Variable Speed
No
Voltage
220 Volts
Wheeled
No
