Description

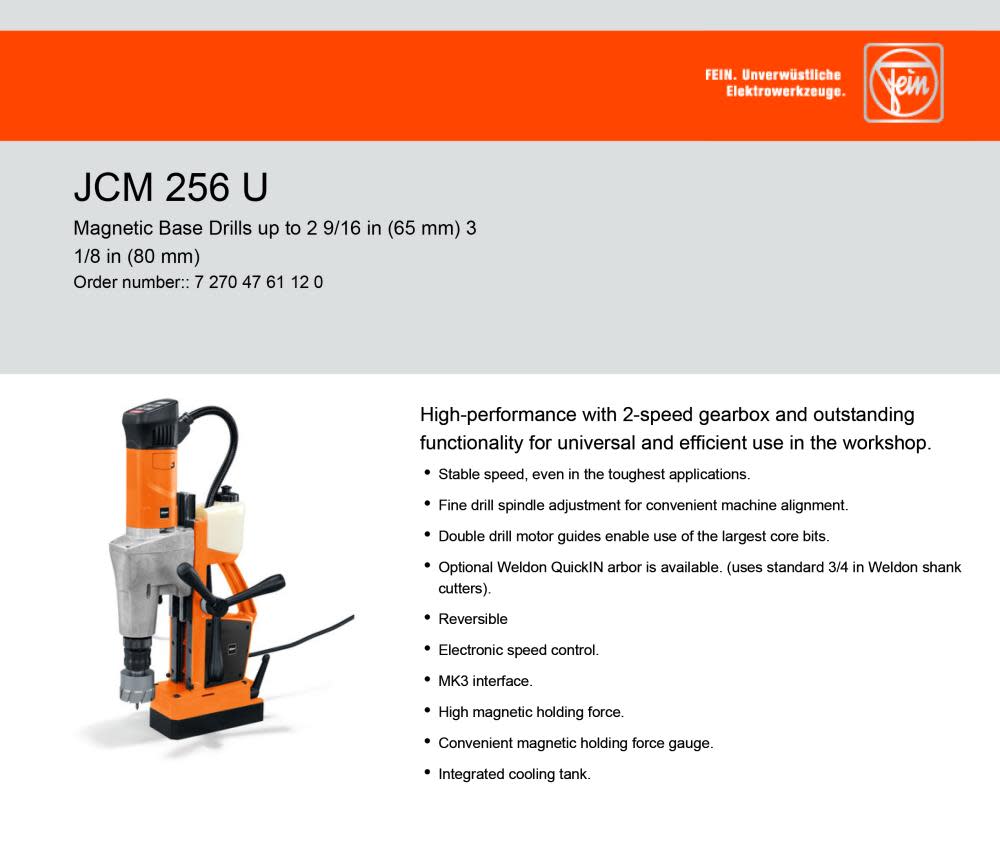

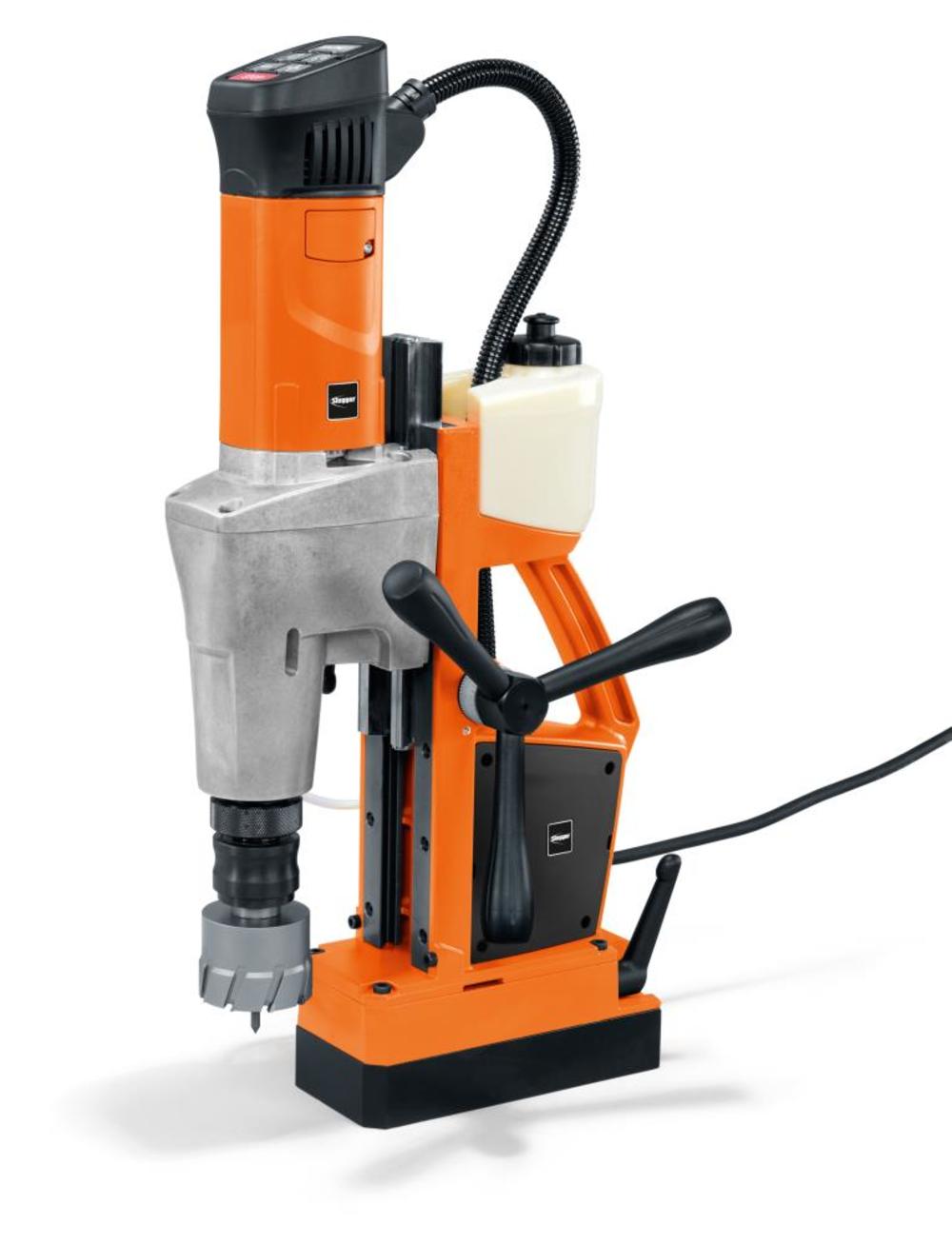

JCM 256U SLUGGER Magnetic Drill 2.5625 In. Capacity
The 2-speed tool JCM 256U combines a compact design with good output. Its universal equipment provides increased functionallity in the workshop.
Features
Speed stability even in tough applications
Swivel base offers fine adjustment of spindle for tool location
Double drill motor guide for use with very large drilling tools
Forward and reverse rotation
MT3 interface
Specifications
Acme Tools Brand Name
FEIN
Acme Tools Part Number
72704761120
Amperage (A)
12
Assembled Weight (lbs)
50.15
California Proposition 65 Warning Required
Yes

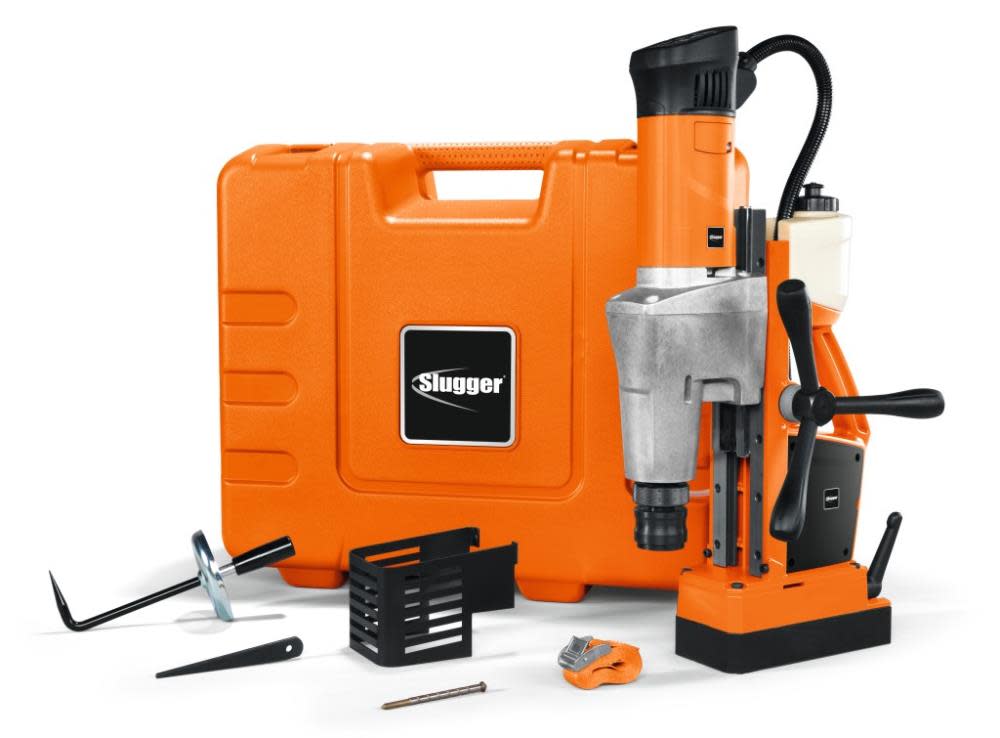

Case Included
Yes
Chuck Capacity
3/4 In. Slugger Shank Chuck with 2.5625 In. cutter capacity
Color / Finish
FEIN orange/matte black/bare metal
Coolant System
Yes
Cord Length (ft)
13
Cordless / Corded
Corded
Country of Origin
Germany
Drill Amperage (A)
12
Drill Type
Magnetic
ETL Listed
No
First Gear Maximum Speed (rpm)
240
First Gear Minimum Speed (rpm)
120
globalTradeItemNumber (GTIN)
04014586872988
Handle Type
D
Height (in)
17.09375
Housing Material
Plastic/metal
Included Safety Features
Includes chip guard and safety strap.
Internal Supplier Part #
72704761120
Internet Product Code (IPC)
F6F40B37310
Length (in)
12.59375
Lock-on Switch
Yes
Manufacturer Warranty
One year warranty with purchase and two additional years with product registration
Net Tool Weight (lbs)
35.5
Package Weight
50.15
Package Weight (lbs)
50.15
Powered Tool Power Source
Electric – Corded
Range Spindle Lock
No
Reverse
Yes
Second Gear Maximum Speed (rpm)
520
Second Gear Minimum Speed (rpm)
260
Side Handle
No
Switch Type
Push button switch
Tool Handle Type
D
UL Listed
No
UPC
4014586872988
Voltage
110
Voltage (V)
110
Weight (lbs)
50.15
Width (in)
12.6875
