Description

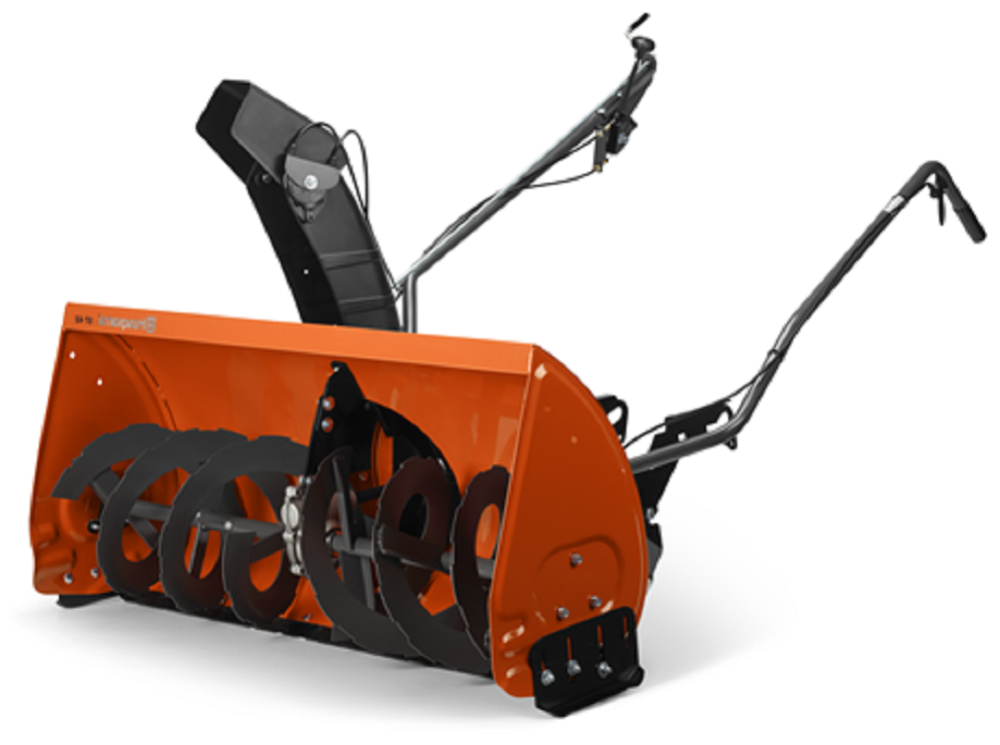

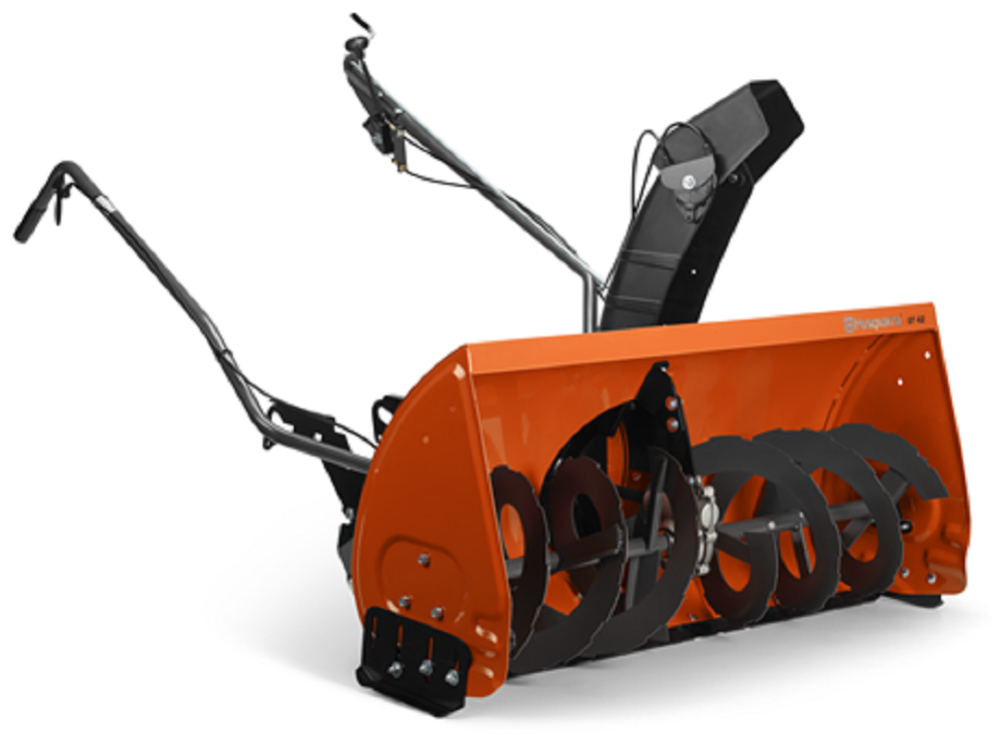

Husqvarna E-Lift Snow Thrower Attachment 50″ 2-Stage
Husqvarna branded 50″ snow thrower attachment. Electric lift via one-button operation. After initial mounting brackets and pulley frame brackets are attached the snow thrower, it can be removed without tools. Two 12” diameter serrated input augers pull in snow and then the high speed impeller propels the snow thru the poly chute. Replaceable wear plate and skid shoes. Can be raised and lowered from tractor seat. Operator can adjust discharge chute and control deflector pitch and has 180 degree rotation from the tractor seat. Wheel weights and chains recommended. Fits most Husqvarna tractors.
Features
180° discharge chute rotation
Electric lift
Two 12″ diameter serrated input augers
Replaceable wear plate and skid shoes
Fits Husqvarna lawn tractors: TS 354D, YTH22V46, YTH24V54, LT17538, TS 146X, TS 148X, TS248XD, TS 254XG, TS 146XD, TS 348XD, YTH18542, YTH24V48, LGT48DXL, TS 142, TS 142X, TS 242XD, TS 248G, YTH2042, TS 354XD
Specifications
Acme Tools Brand Name
HUSQVARNA OUTDOOR POWER EQUIPMENT
Acme Tools Part Number
967 34 39-02
Assembled Depth (in)
45
Assembled Height (in)
26
Assembled Weight (lbs)
242
Assembled Width (in)
50
Assembly Required
Partial
California Proposition 65 Warning Required
Yes
CARB Compliant
Yes
Clearing Width (in)
50
Country of Origin
United States
Discharge Chute Rotation Angle (Deg)
180
Fuel Tank Capacity (gal)
NA
globalTradeItemNumber (GTIN)
00085388645272
Handle Type
No Heated Handles
Headlights
No
Heated Handles
No
Height (in)
26
Horsepower (hp)
NA
Intake Height (in)
20
Maximum Throwing Distance (Ft)
NA
Number of Forward Speeds
1
Number of Reverse Speeds
0
Package Contents
Snow Thrower, Mounting and Pulley Frame Brackets and Owner’s Manual
Package Depth
46
Package Height
28
Package Weight
250
Package Weight (lbs)
250
Skid Shoes
Yes
Stage
Single Stage
Start Type
Other
UPC
085388645272
