Description

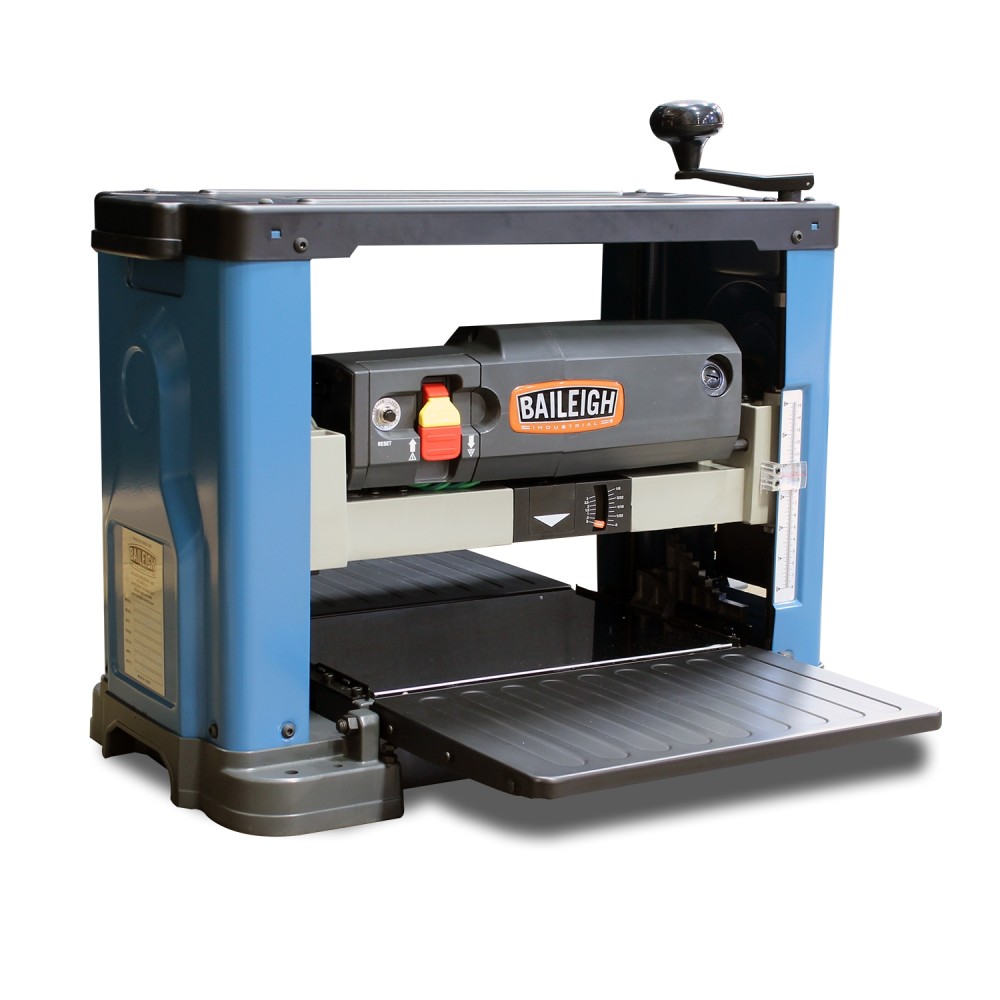

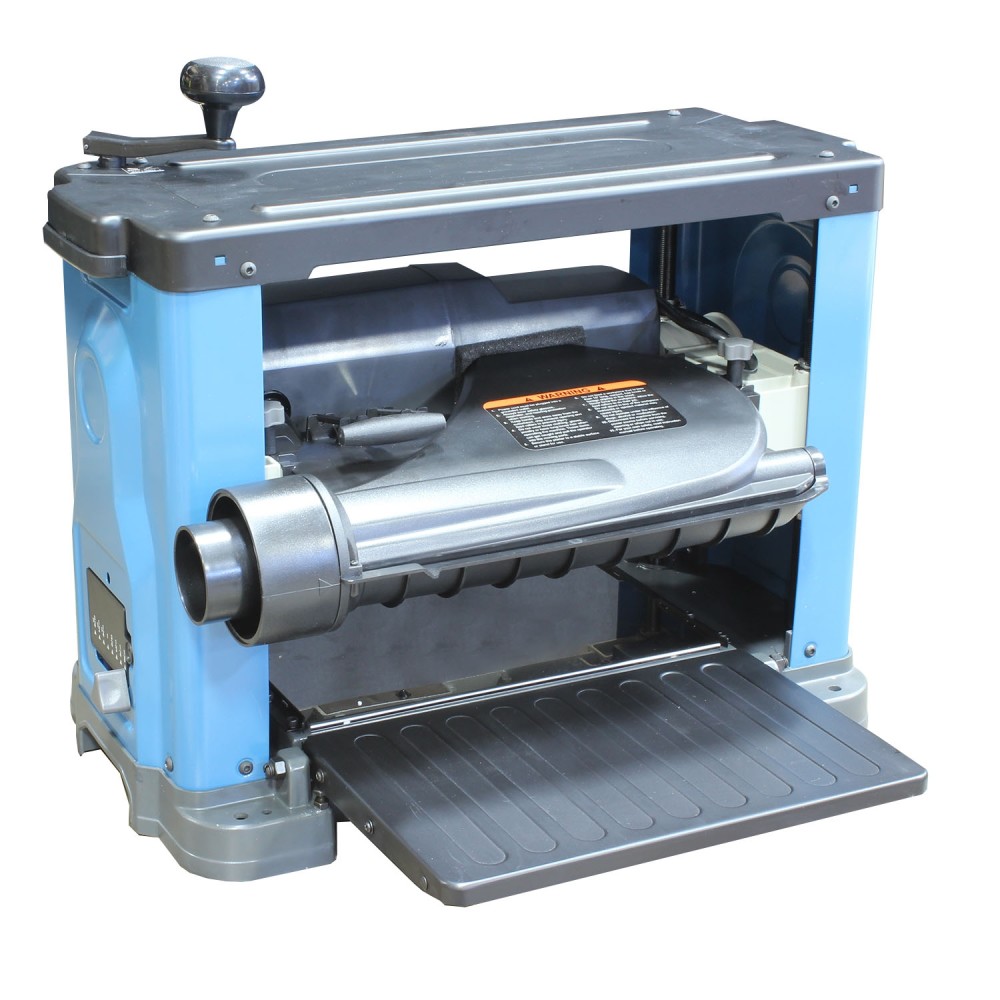

Baileigh IP-1306 Benchtop Planer 110V 2HP 13″ x 27.875″
The IP-1306 bench wood planer is our smallest planer. It’s easily portable but performs like a much larger unit. Built to last, this 13 In. wide planer is perfect for hobbyists and shops on a budget.
Features
A 2HP, 15A motor turns the cutter head at 10000 Rpm

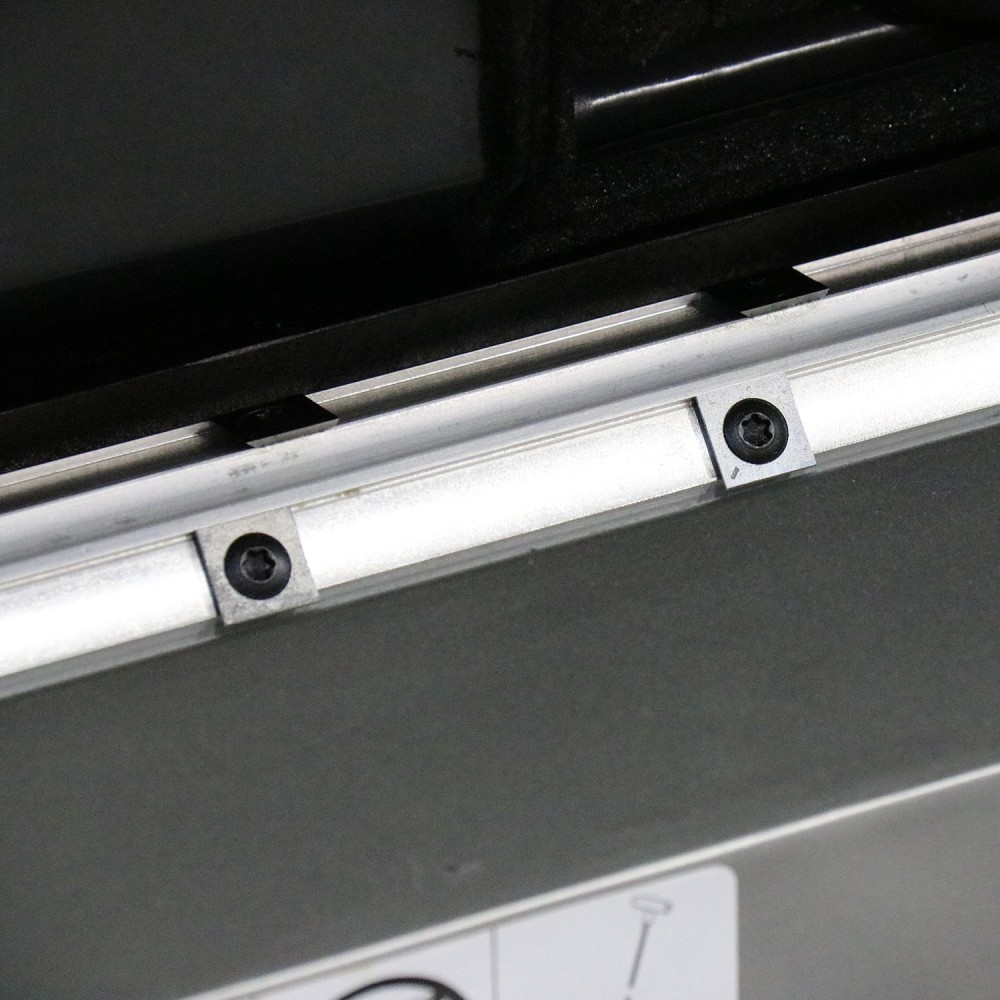

Spiral style cutter head with 26 2-sided carbide inserts comes standard
6 In. maximum cutting height, Up to 1/8 In. cut depth
Runs on 110V power, you can use this portable wood planer anywhere
13 In. x 9-7/8 In. main table includes front and back wing extensions that can expand to 13 In. x 27-7/8 In.
Large table keeps the board flat and straight for dependably true cuts

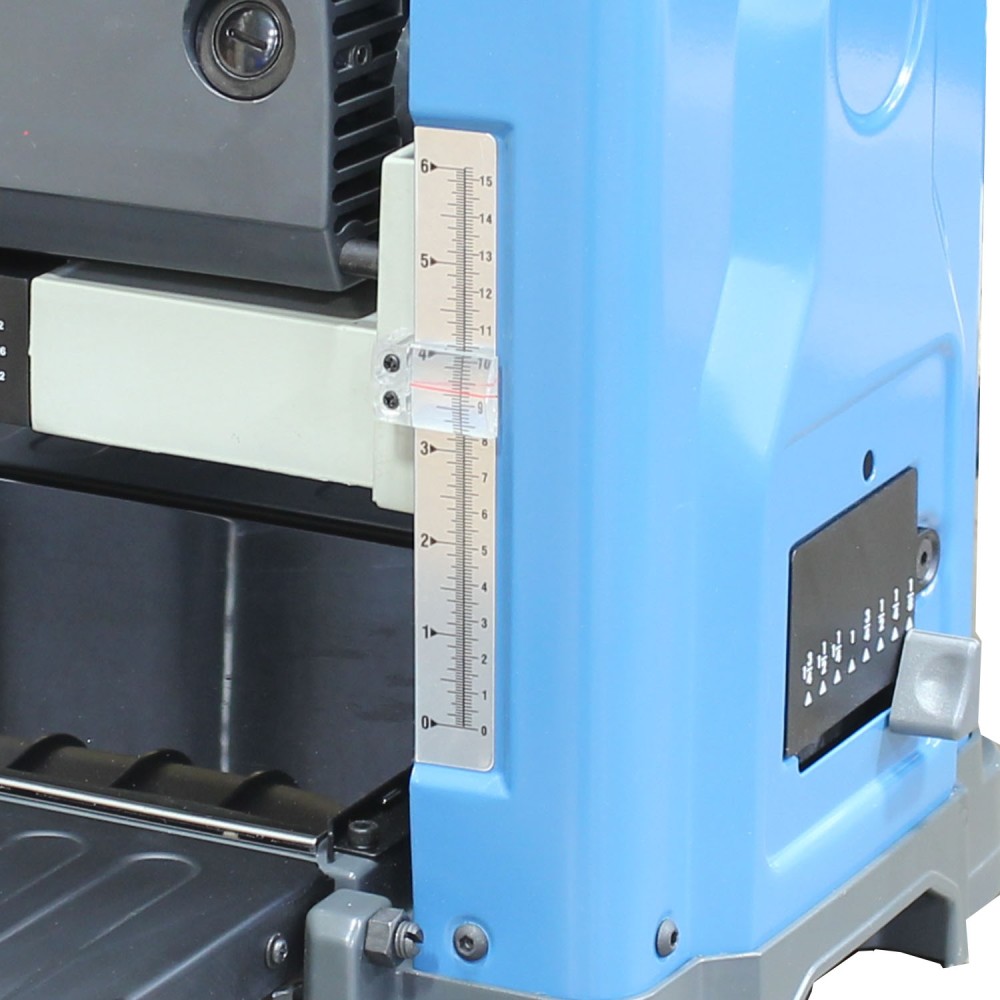

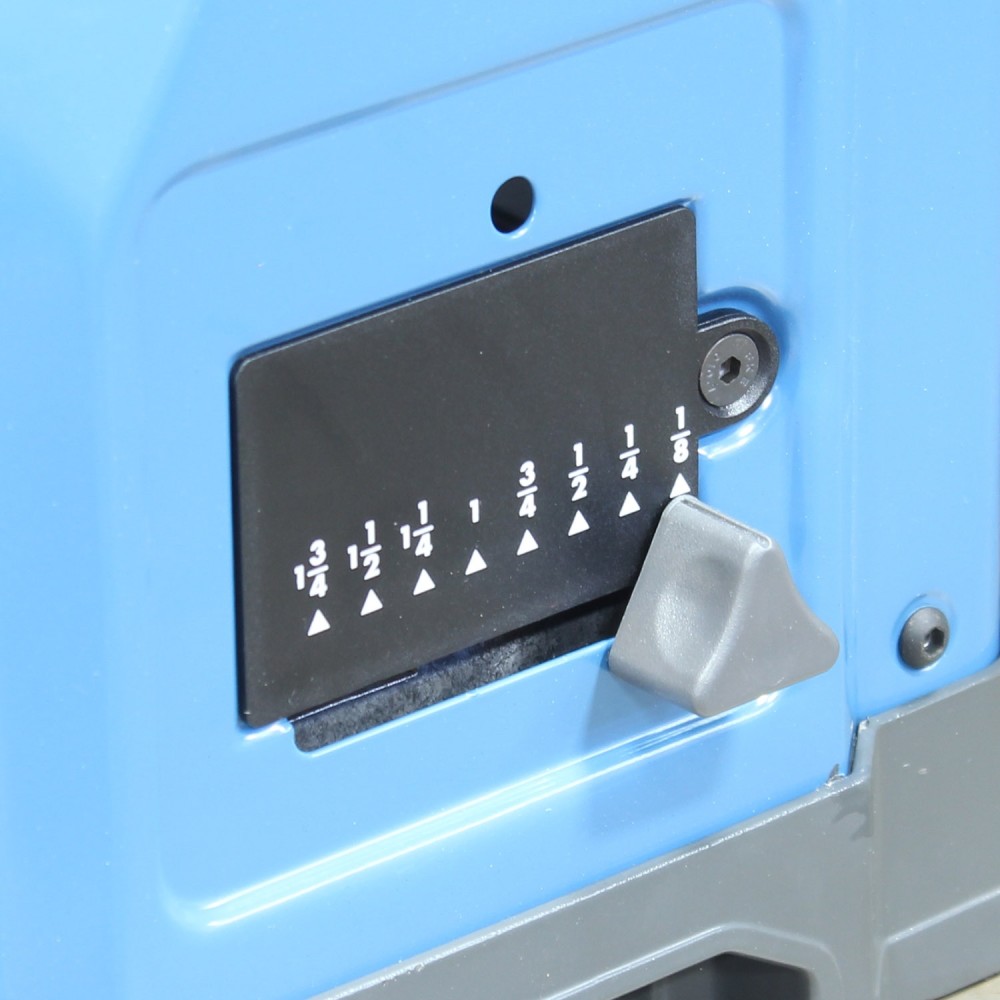

Sliding quick set depth stop for easy changes in depth of cut

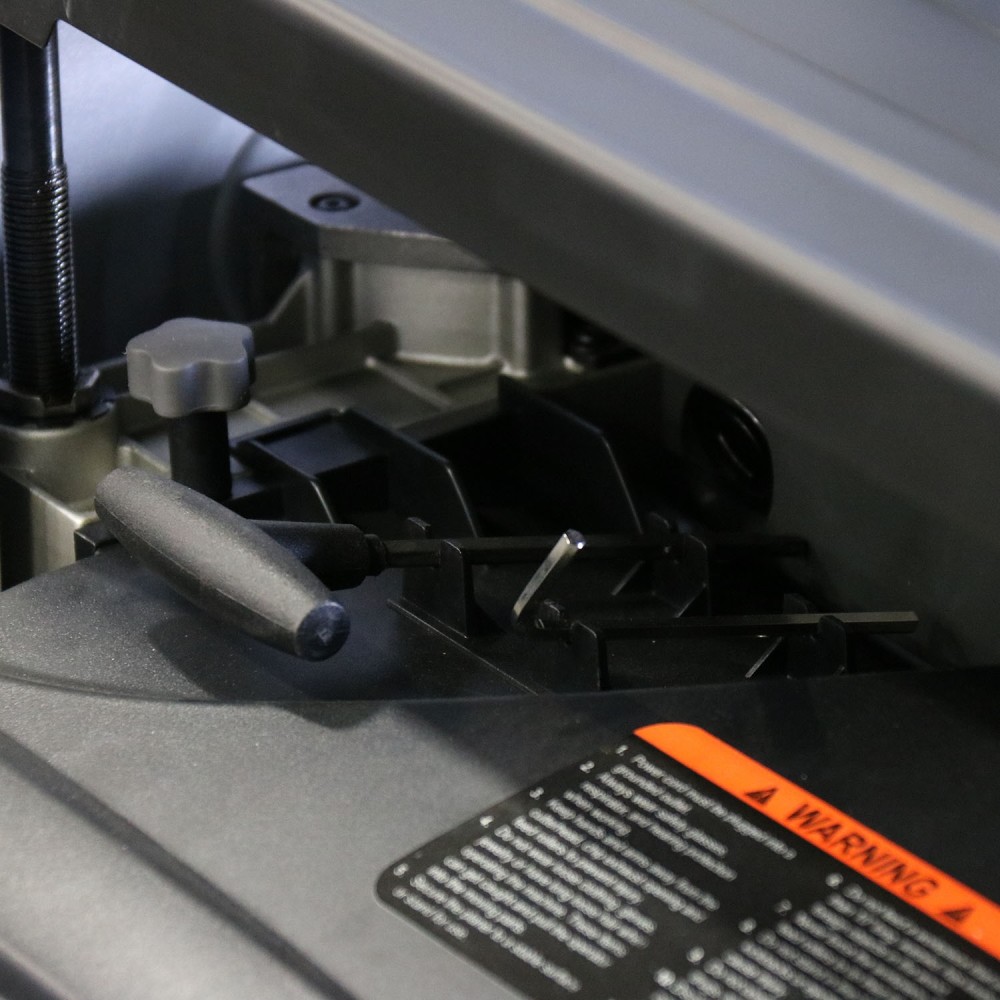

4 screw posts to raise and lower table keeps the table flat at all times, 26 fpm infeed speed

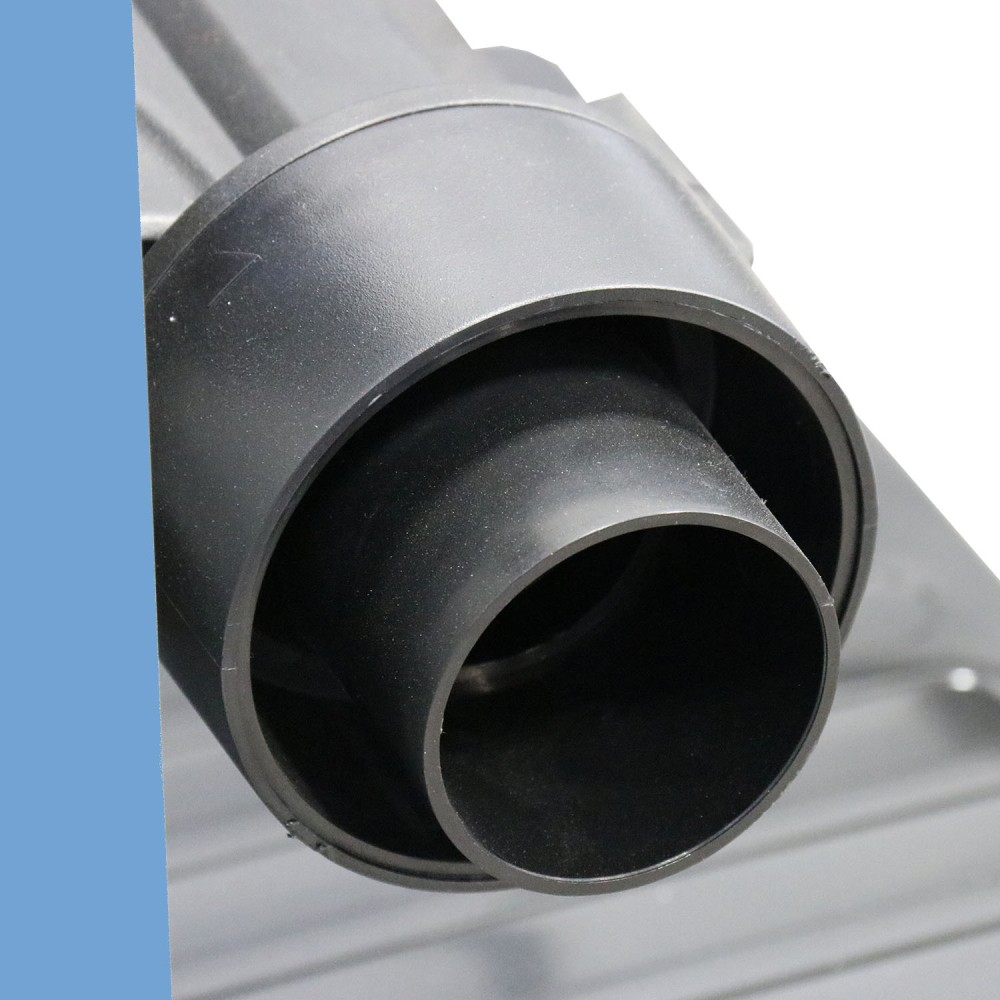

2-1/2 In. and 4 In. dust ports can hook up to your dust collection system so your shop stays neat and clean
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1020164
Amperage (A)
15
Assembled Weight (lbs)
80
Bench or Stationary
Bench
Blade Count
26
Blade Cutting Material
Carbide
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutter Head Type
Spiral
Depth Measurement System
Yes
Feed Rate/s (Ft/Min)
26
globalTradeItemNumber (GTIN)
00400020002259
Integrated Chip Management
No
Maximum Board Thickness (in)
6
Maximum Cutting Depth (in)
0.125
Maximum RPM
10000
Maximum Width Cutting Capacity (in)
13 in
Motor Horsepower (hp)
2 HP
Package Contents
Benchtop Planer
Package Depth
22
Package Height
26
Package Weight
80
Reversible
Yes
Set / Individual
Individual
UPC
731325485066
Variable Speed
No
