Description

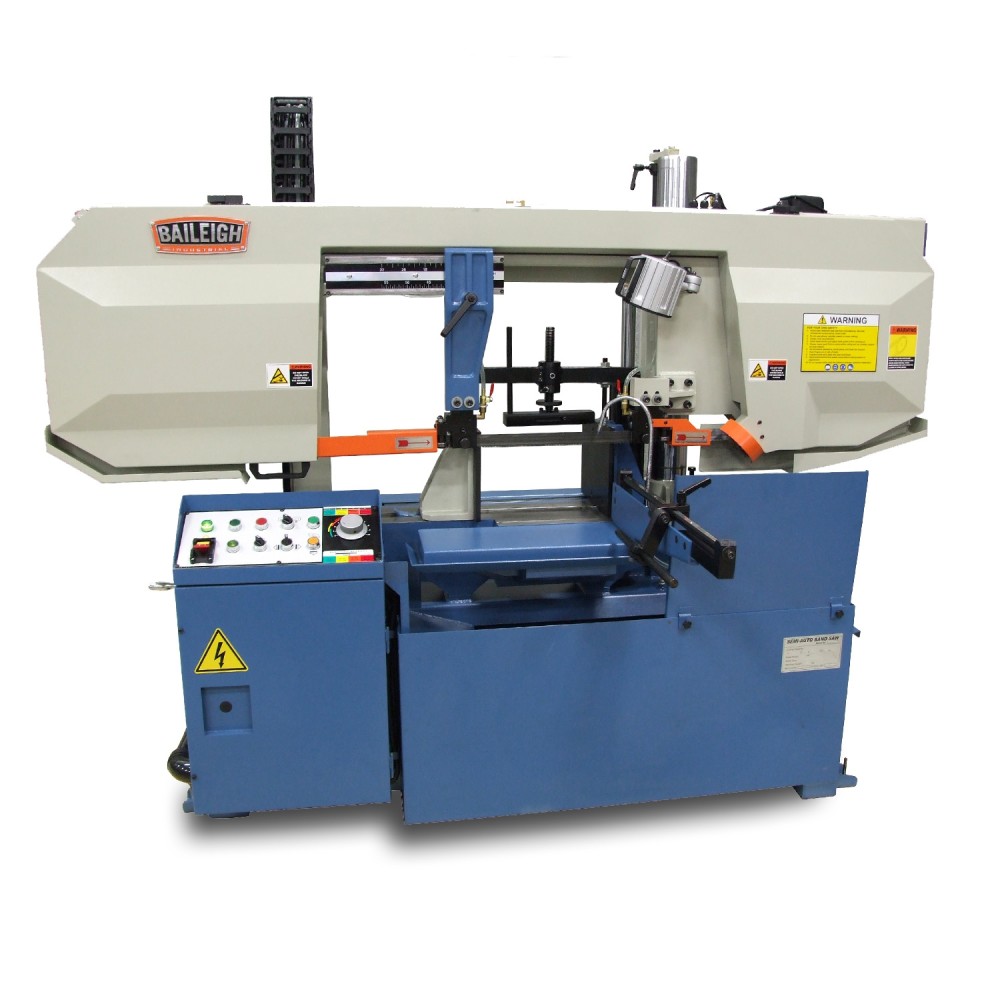

Baileigh BS-360SA Horizontal Band Saw Semi-Auto 220V 3 Phase
Need to cut steel all day, every day? This semi-automatic horizontal band saw will save you time with its efficient hydraulic system. The cast iron bow and steel frame maintain accuracy.
Features

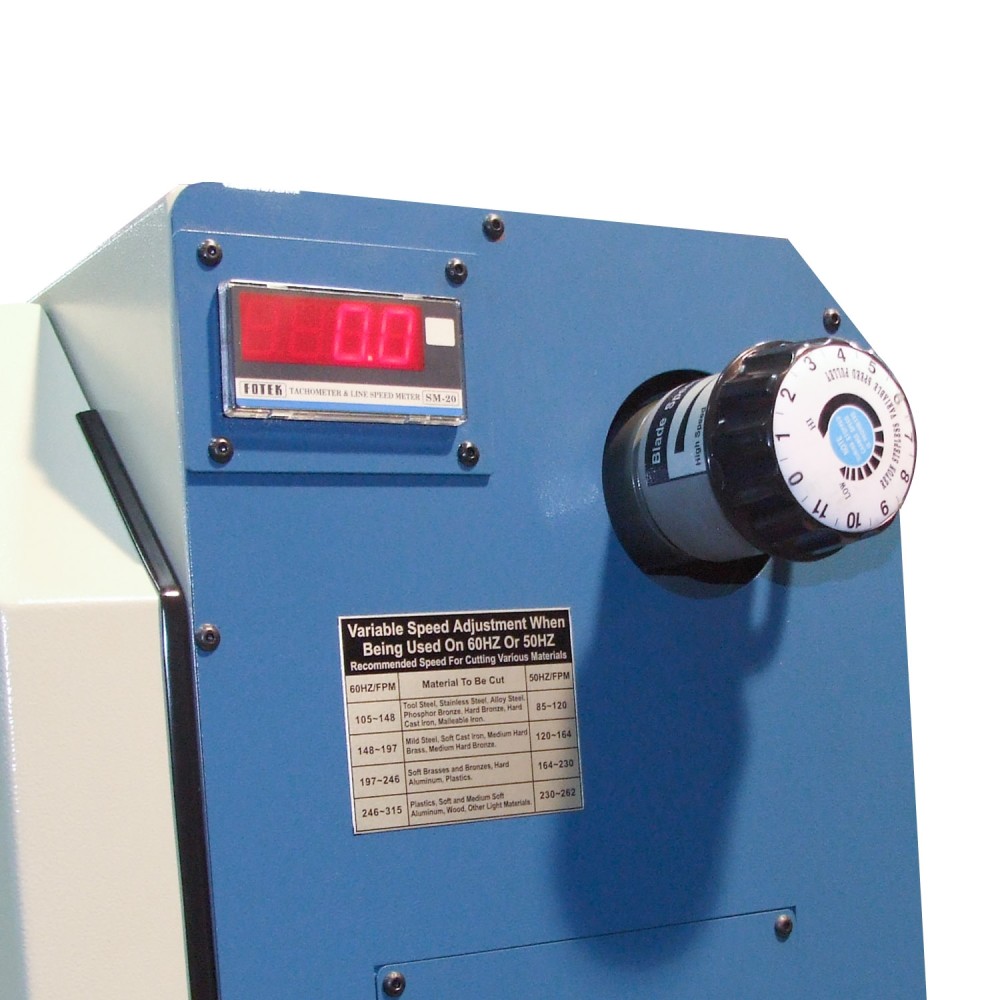

Huge capacity of 14 In. round and 14 In. x 22 In. rectangle, 77-252 Fpm variable blade speed
Accepts a standard 1.25 In. blade (included) to make straight, accurate cuts, robust 5HP motor runs on 220V 3 Phase power

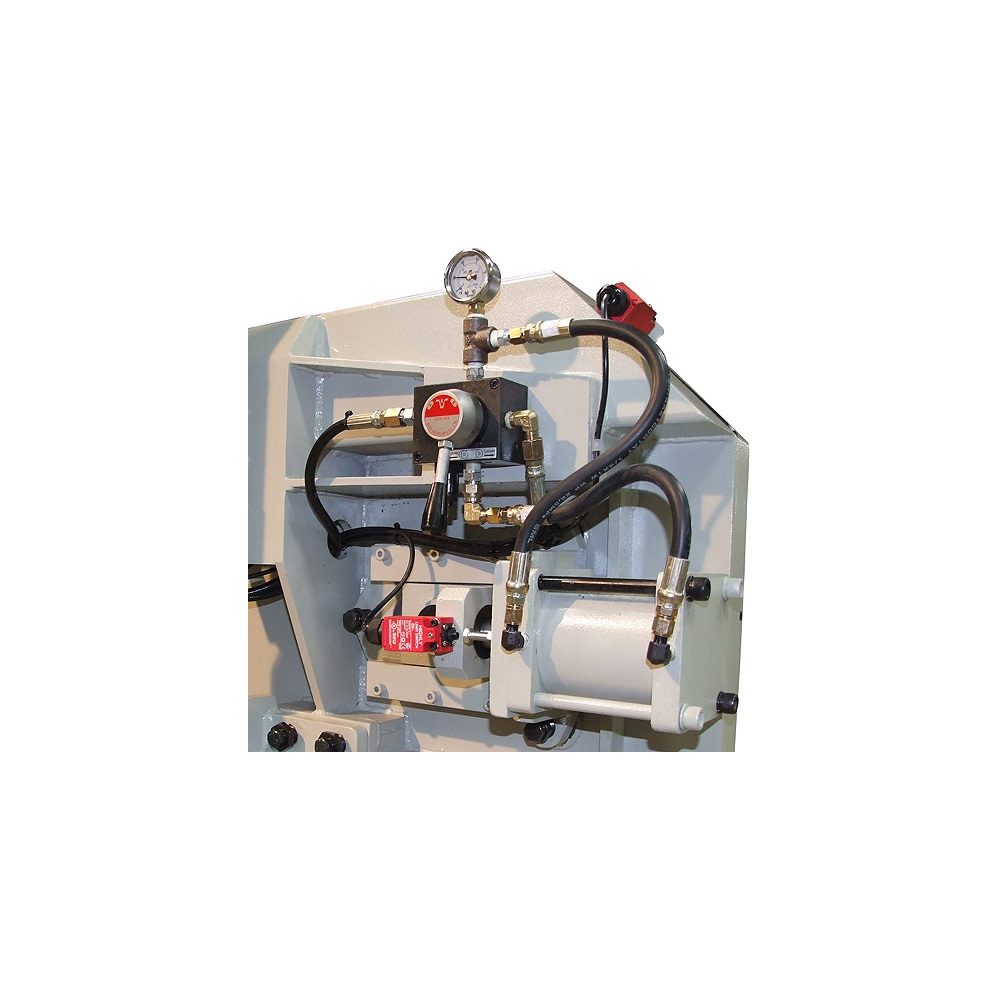

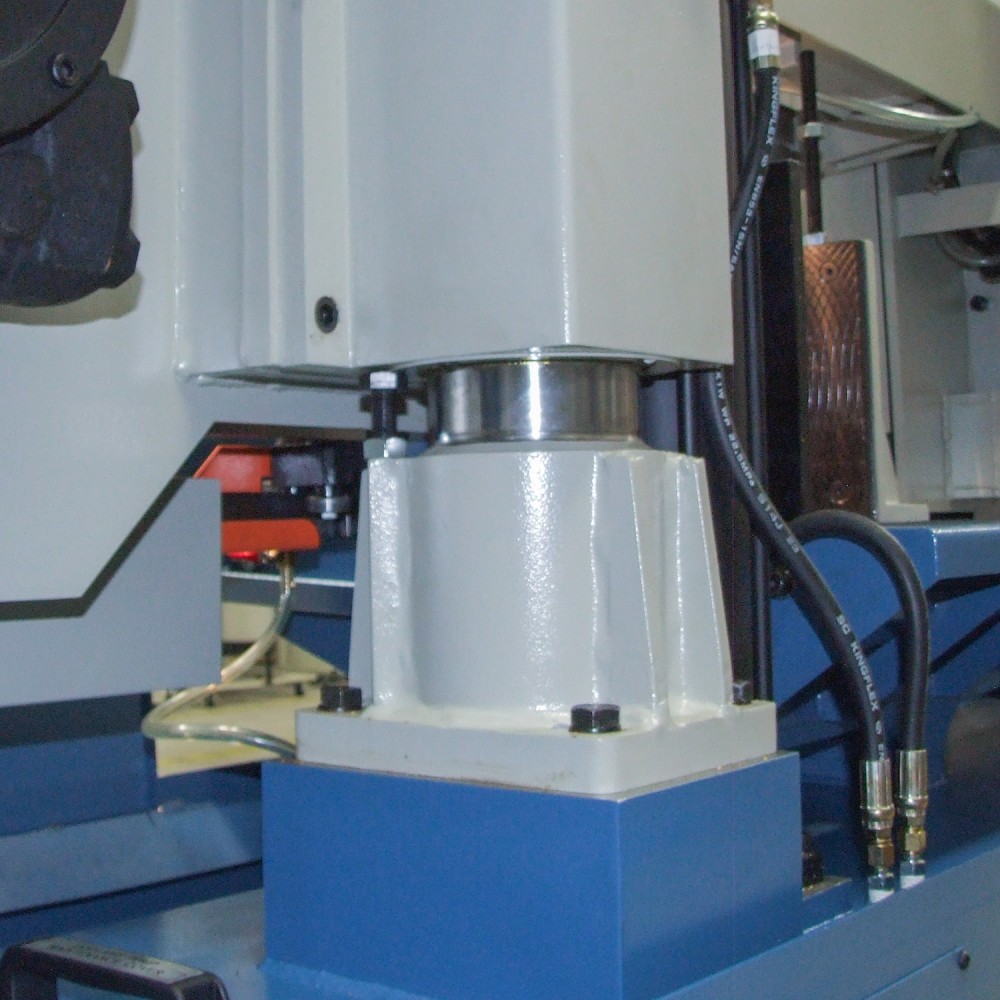

Cast iron vise and bow, machined to exacting tolerances, ensure that cuts are as precise as possible, industrial-grade hydraulic system controls the vise and the bow height

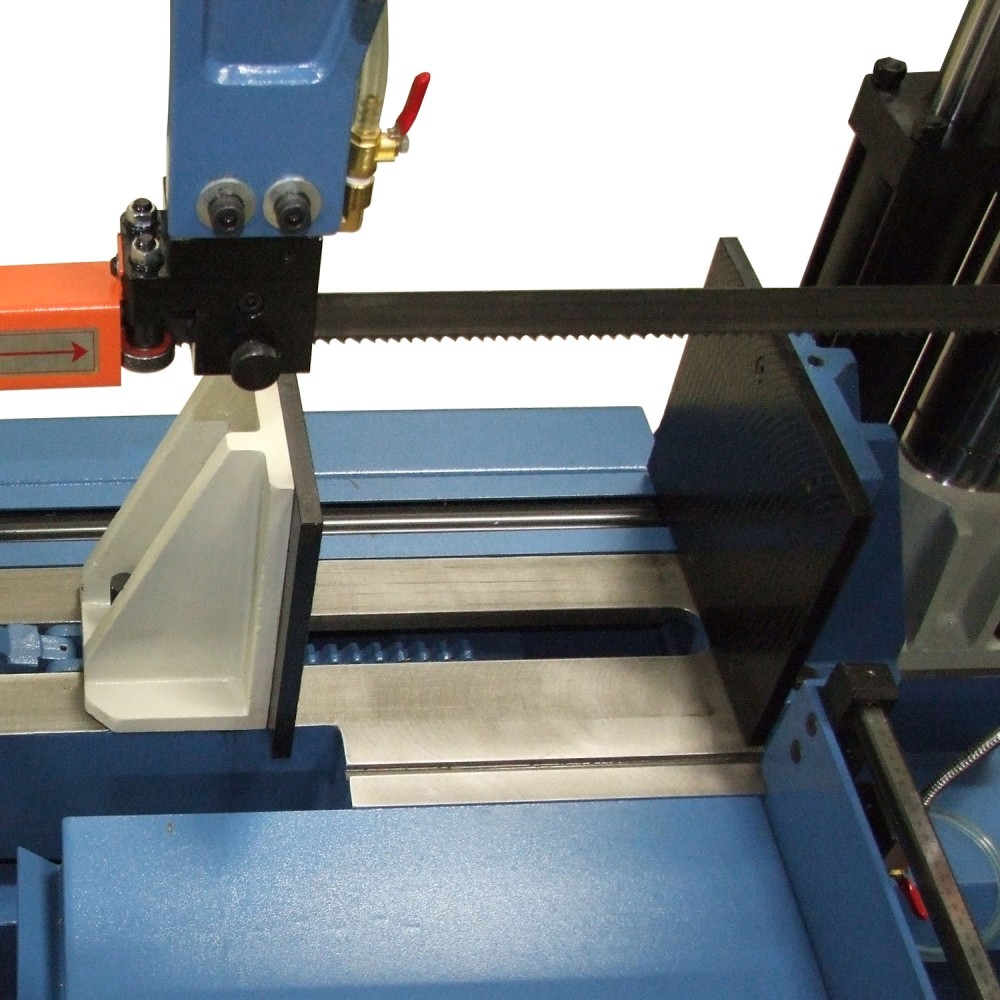

Fully-sealed ball bearings used as blade guides track the blade smoothly and properly

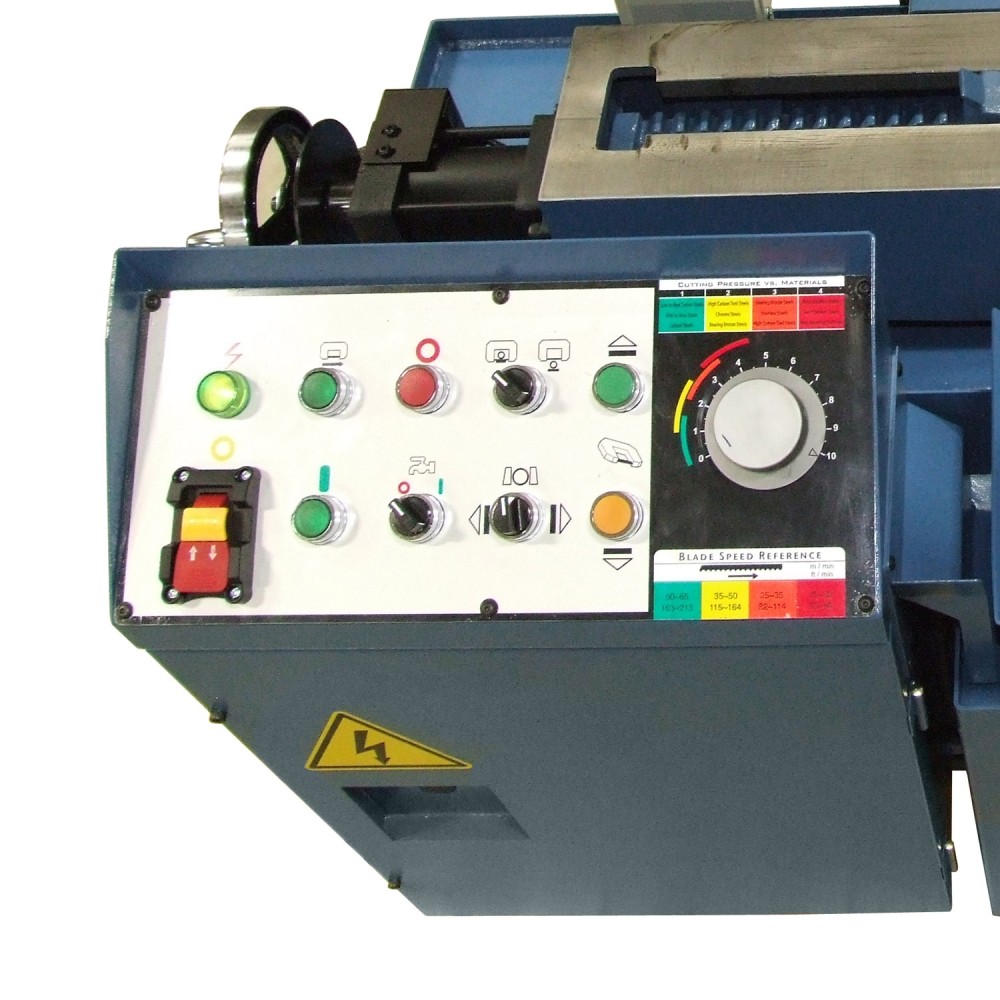

Easy-to-use control panel-with labeled buttons and dials for locking the vice, starting the blade, and more-lets you get up and running quickly
Patented hydraulic blade tension device makes it easy to get the right settings. Just line up the arrow with the green fluid-filled gauge
Electro-welded steel frame reduces vibrations and keeps cuts accurate over many years of production

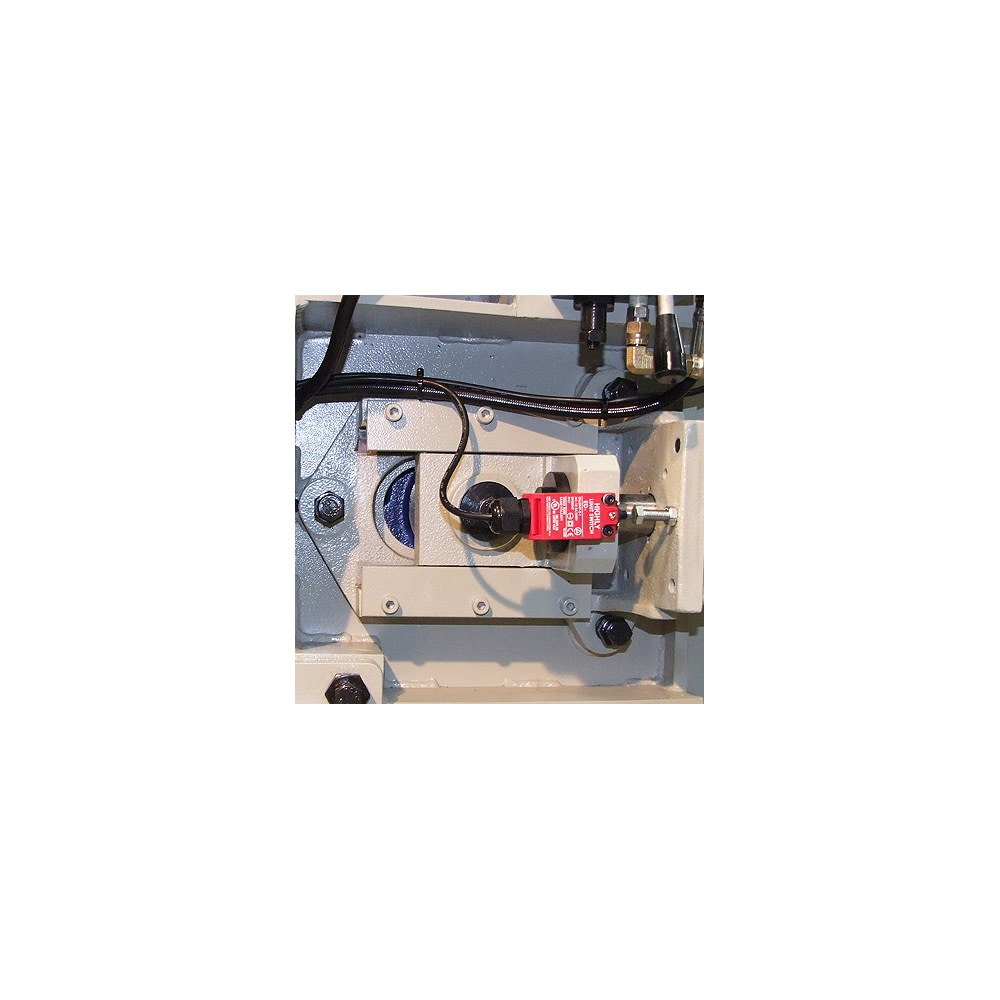

Includes blade brake switch for safety, comes with a chip removal blade brush

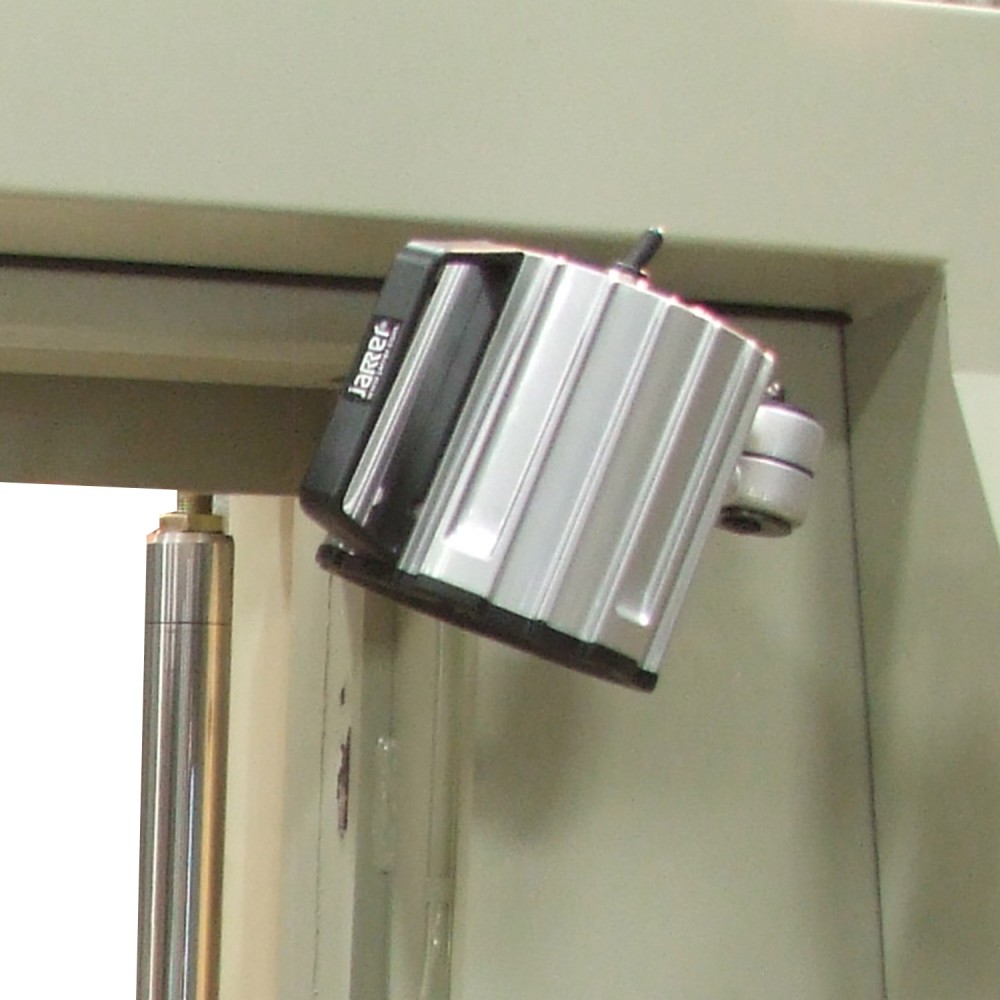

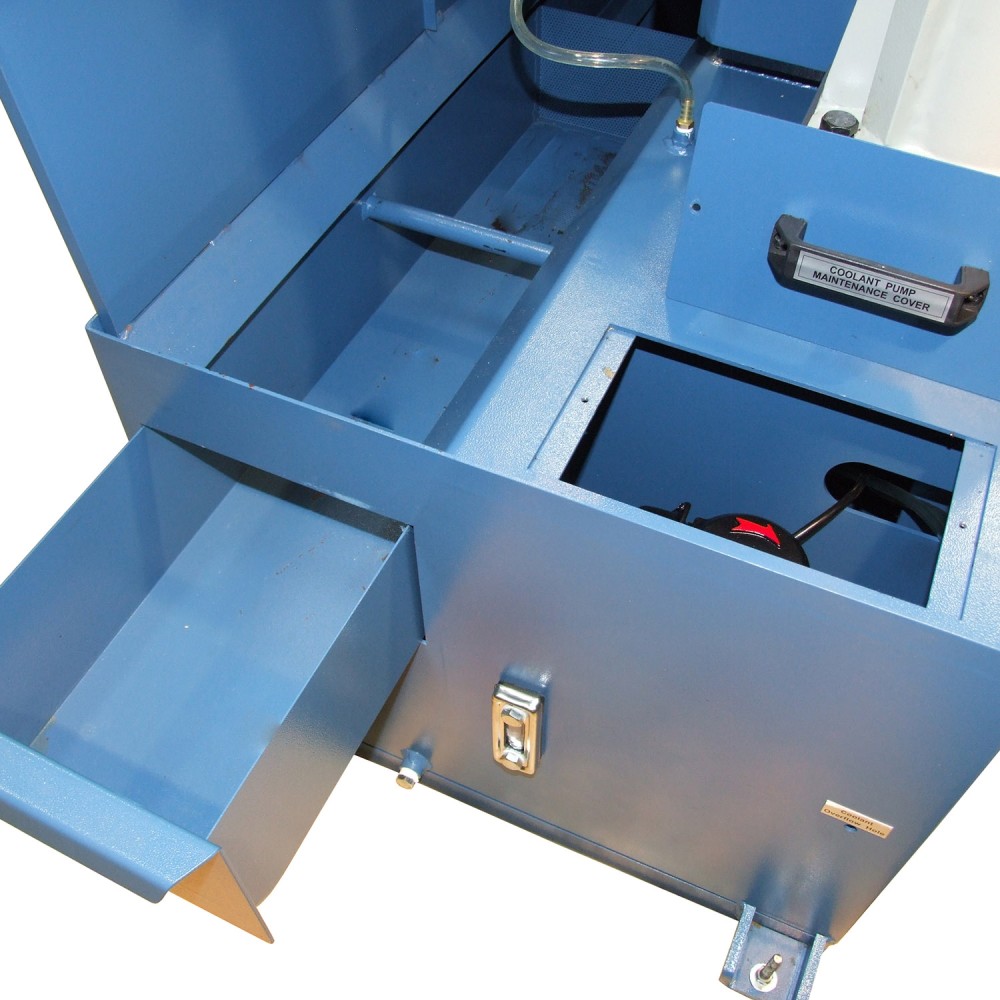

Flood coolant system washes away chips after cutting and helps blades last longer, bright halogen work light gives you a clear view of what you’re cutting
Specifications
Acme Tools Brand Name
BAILEIGH
Acme Tools Part Number
1001582B
Assembled Weight (lbs)
2600
Band Saw Frame Material
Steel
Blade Guide Type
Bearings
Cordless / Corded
Corded
Country of Origin
Taiwan
Cutting Capacity Height (in)
Rectangular: 14.17 In. x 22 In.; Round: 14.17 In.
globalTradeItemNumber (GTIN)
00400001004333
Horsepower (hp)
5
Maximum Blade Length (In)
192.13
Maximum Blade Width (In)
1.3
Maximum Feet Per Minute
252
Minimum Feet Per Minute
77
Package Contents
Band Saw, 1.25 In. Blade, Blade Brake Switch, Blade Brush
Package Depth
98
Package Height
74
Package Weight
2600
Phase
3
Stand Included
No
Table Height (in)
29.21
Table Height From Floor (In)
29.21
UPC
400001004333
Variable Speed
Yes
Work Light
Yes
