Description

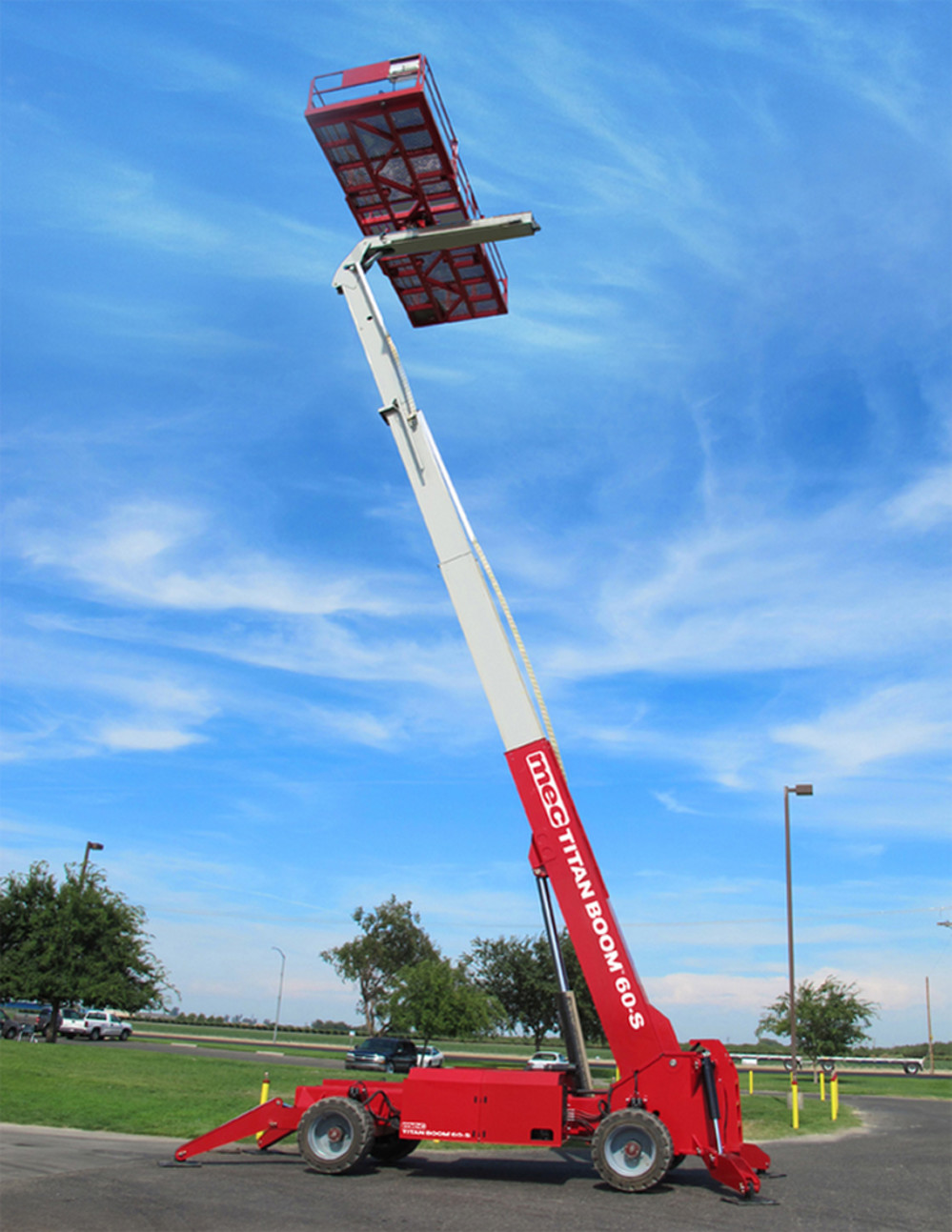

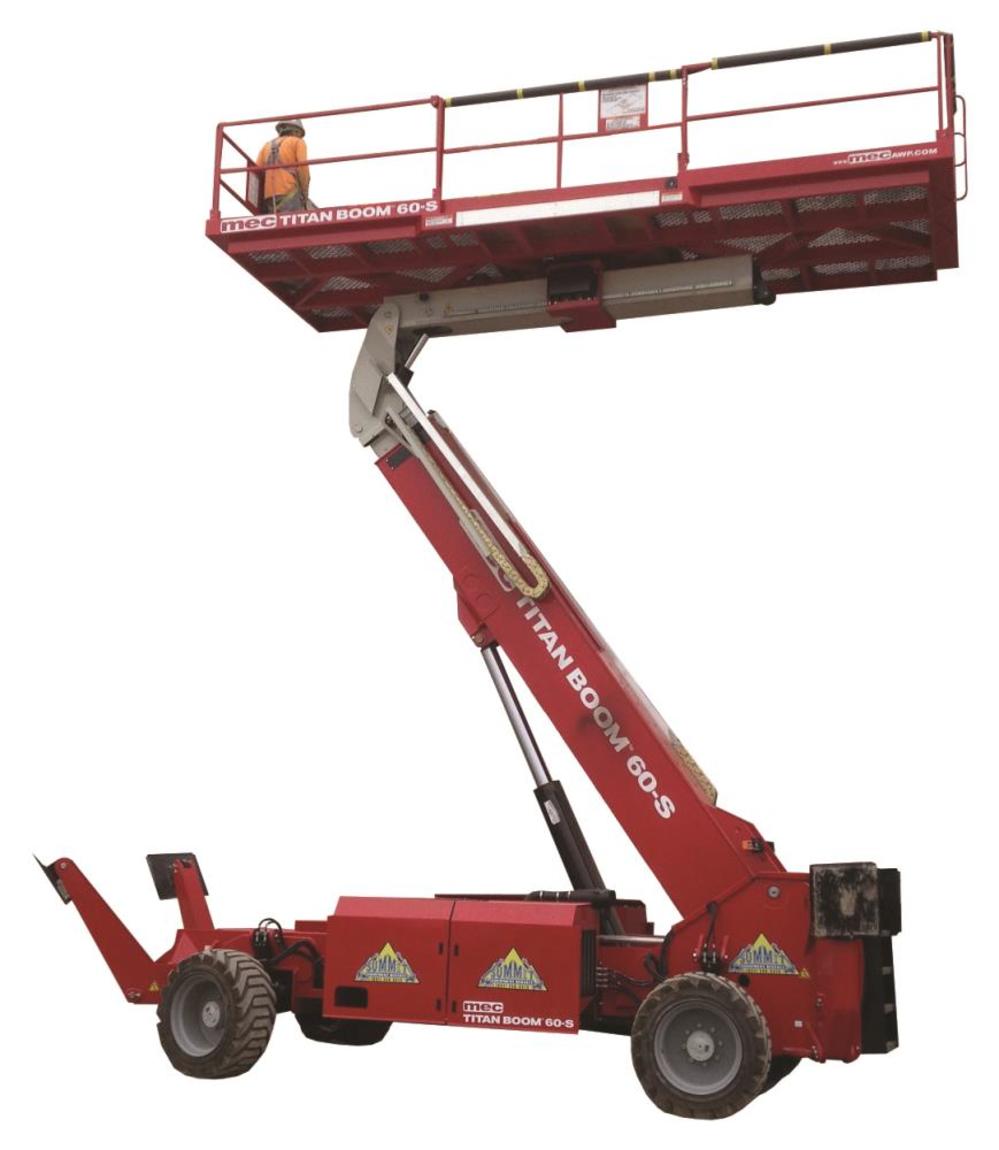

60 Ft. Titan Boom® Ultra Deck Self-Propelled Diesel Boom Lift
Titan 60-S is like having your own personal workshop in the sky. This 60ft platform height telescopic Titan Boom lift is designed to deliver 3,000 lbs. capacity on a 22 ft. x 90 in. ultra deck platform with boom outreach and rotation. The Titan 60-S is like 3 machines in 1 with the lift capacity of a telehandler, the work area of an ultra deck scissor lift, and the reach and rotation of a 60 foot boom. Elevate up to 4 workers with materials to eliminate the need for extra trips to the ground. Three steering modes gets in close to work areas with 2-Wheel Steer, 4-Wheel Steer, and Crab Steer. Titan Boom, a titan of a machine that’s revolutionizing construction.
Features
Non-skid metal deck construction
3,000 lbs. combined platform capacity
Easy access sliding side gates for material loading
Stainless steel wire rope lanyard anchors for full platform mobility
Pin-less guard rail system for quick and simple guard rail lowering
Fully proportional drive and lift controls
Oscillating front and rear axles for frame leveling ability
High-torque power package with 4-wheel drive
180° platform rotation
1-Touch chassis leveling
Triple joystick interface
Fully proportional multi-function controls
2-speed drive motors
Kubota turbo diesel engine
Engine shutdown protection
Large swing module doors for access to all components
Emergency shut-off at platform and lower controls
Platform swing gate and machine tie downs
Multi-axis tilt sensor
Tilt alarm and horn
4-wheel disc brakes
Specifications
Acme Tools Brand Name
MEC
Acme Tools Heavy Equipment
true
Acme Tools Part Number
TITAN 60-S
Acme Tools Quote Only Item
true
Additional Contents
Operator’s Manual
Assembled Weight (lbs)
39700
California Proposition 65 Warning Required
Yes
Color / Finish
Red and Gray
Country of Origin
United States
Engine
Kubota Tier 4 Final Turbo Diesel Engine
Engine Type
Diesel
Fuel Tank Capacity (gal)
50
globalTradeItemNumber (GTIN)
00420000004363
Horsepower (hp)
100
Hour Meter
Yes
Internal Supplier Part #
TITAN 60-S
Internet Product Code (IPC)
729774709E0
Manufacturer Warranty
One Year Limited Warranty
Package Contents
Operator’s Manual
Package Weight
39700
Package Weight (lbs)
39700
Platform Length (in)
264
Platform Width (in)
90
Tire Size
41 In. OD
Turning Radius (in)
288
UPC
420000004363
Weight (lbs)
39700
